KONUS FIRE CLIP-ON 2.1x-16.8x 384x288 thermal imager

KONUS FIRE CLIP-ON 2.1x-16.8x 384x288 thermal imager

Name: KONUS FIRE CLIP-ON 2.1x-16.8x 384x288 thermal imager
Brand: Konus
Price: 102595 UAH
Availability: OutOfStock

Product Code: 9949

Brand: Konus

Reviews: 0

102 595₴

Reward Points: 1025

Free delivery

Pre-Order

Description

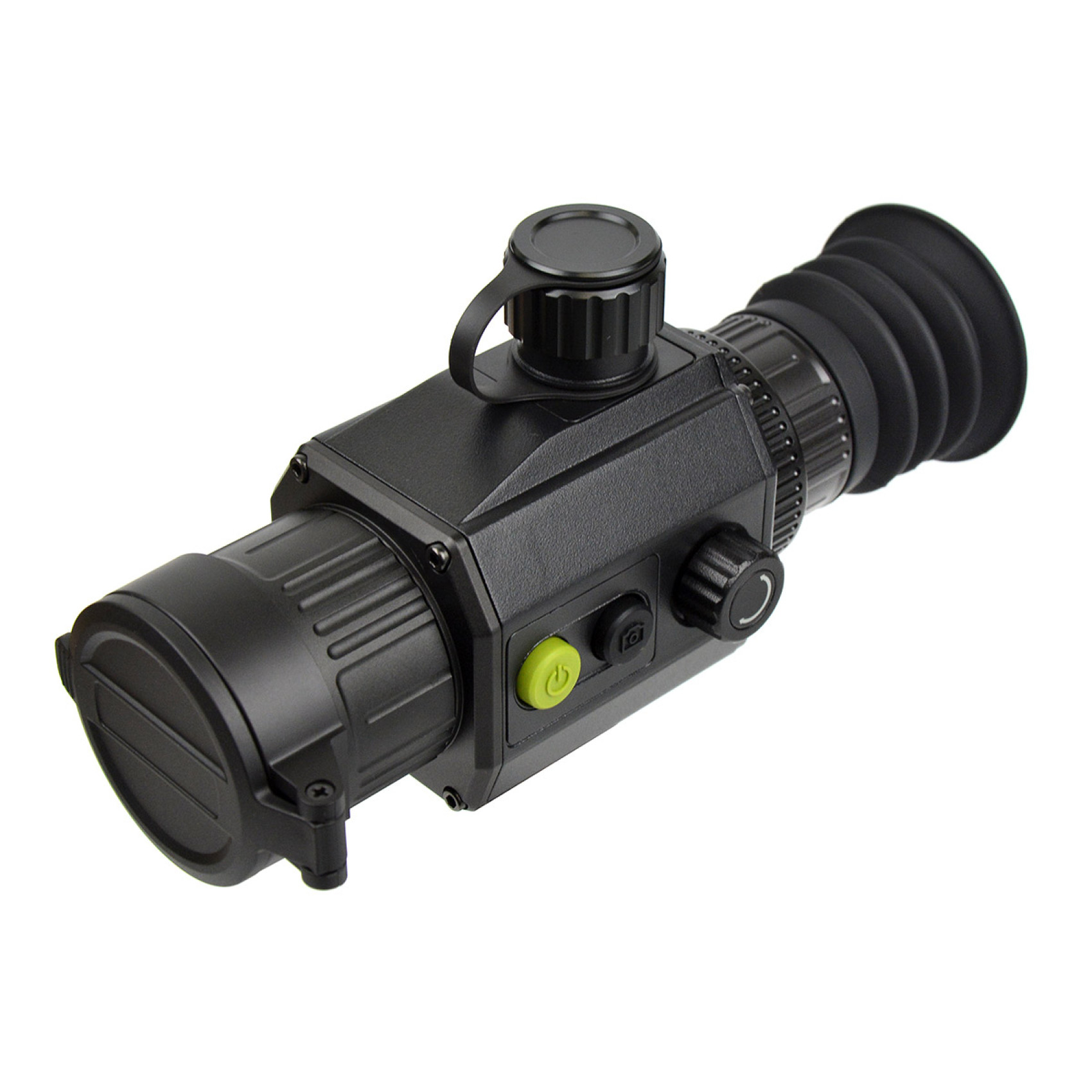

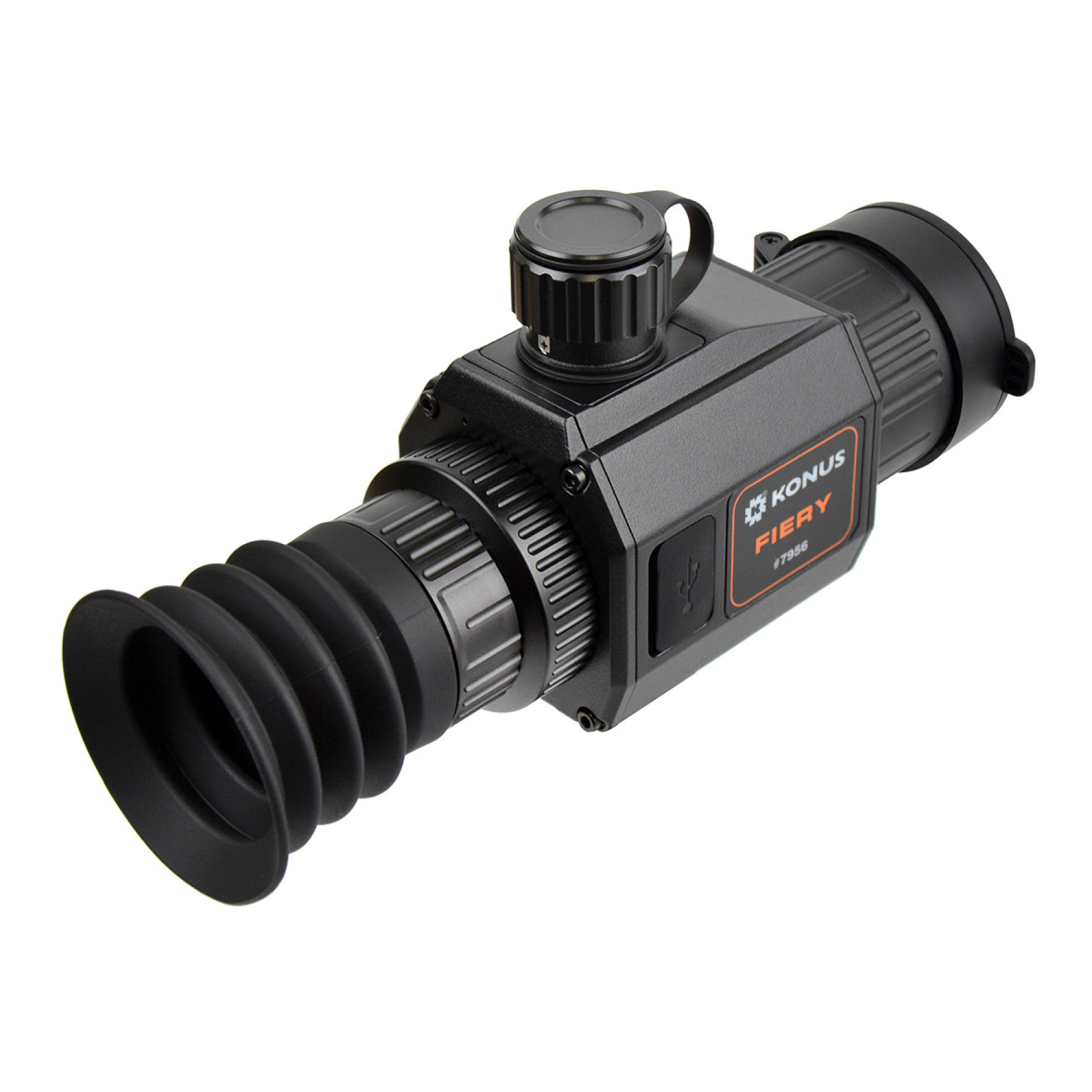

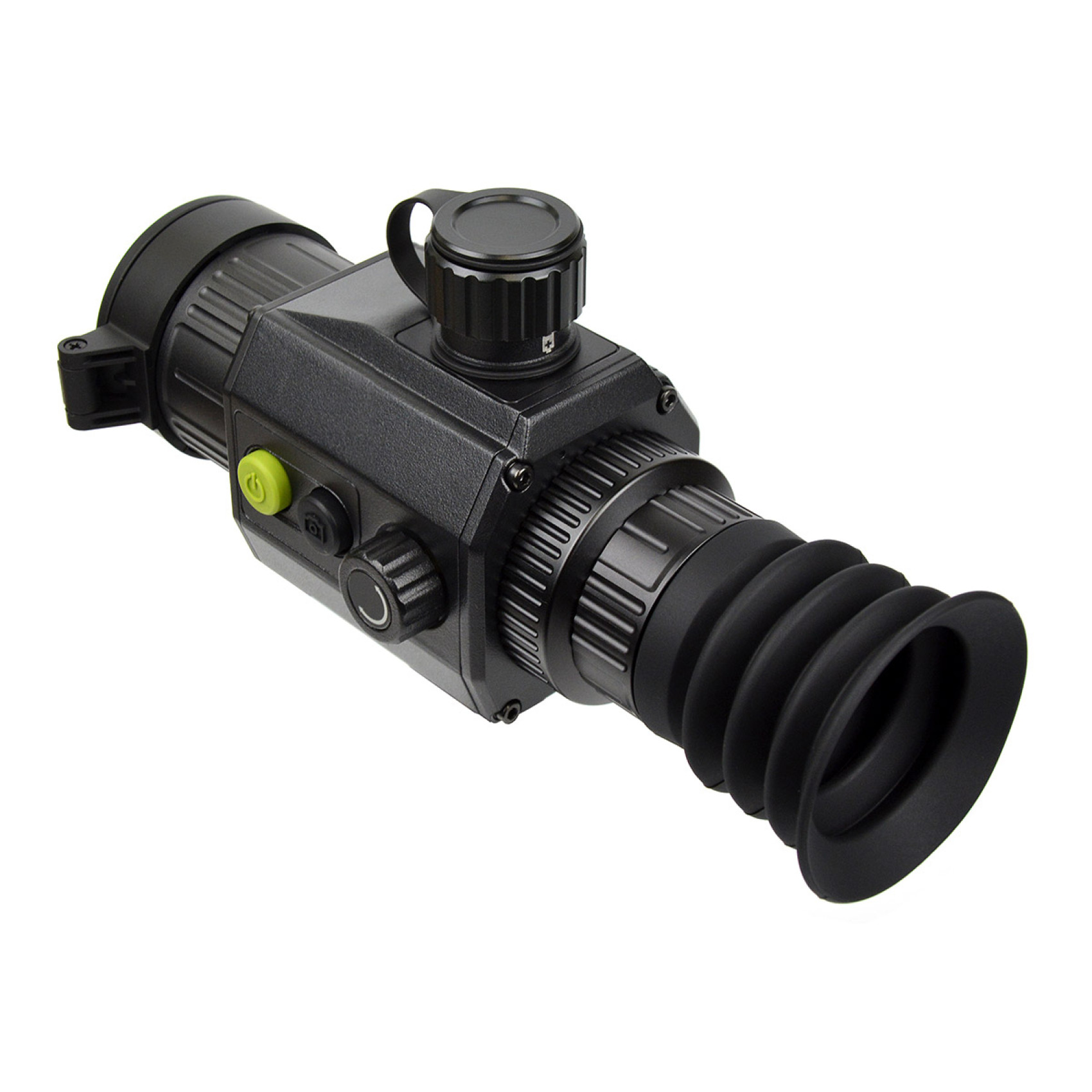

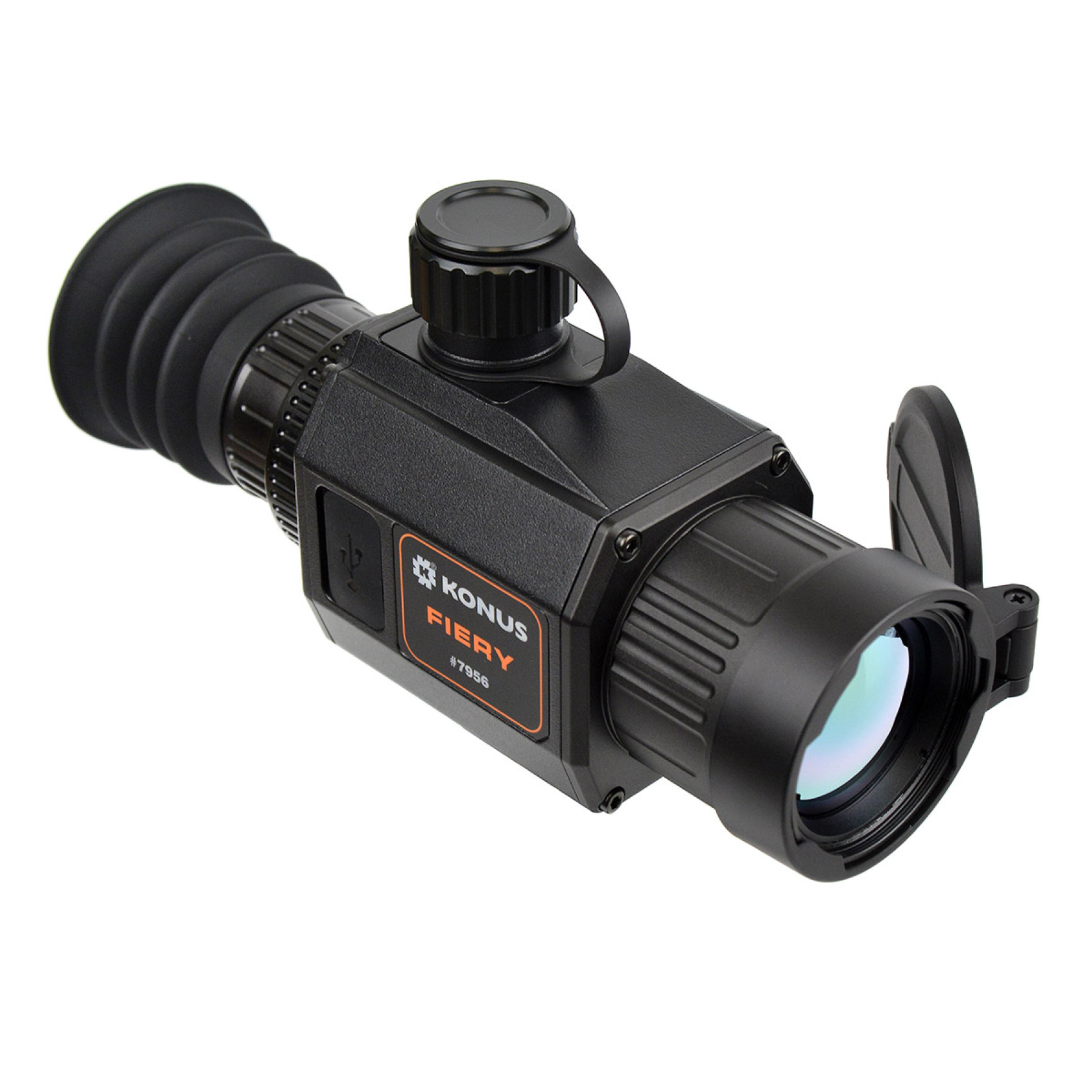

The KONUS FIRE CLIP-ON 2.1x-16.8x 384x288 thermal imager is a 3-in-1 multifunctional thermal imaging system with a rich set of accessories that provides a wide range of applications. This thermal imager combines the functions of three devices at once: a thermal monocular, a thermal sight and a thermal daytime optics attachment.

Detection / recognition / identification

Car - 3900 m / 1000 / 500 m
Person - 1800 m / 460 / 230 m

Features

Powered by a replaceable 18650 battery
Possibility of mounting on Weaver/Picatinny

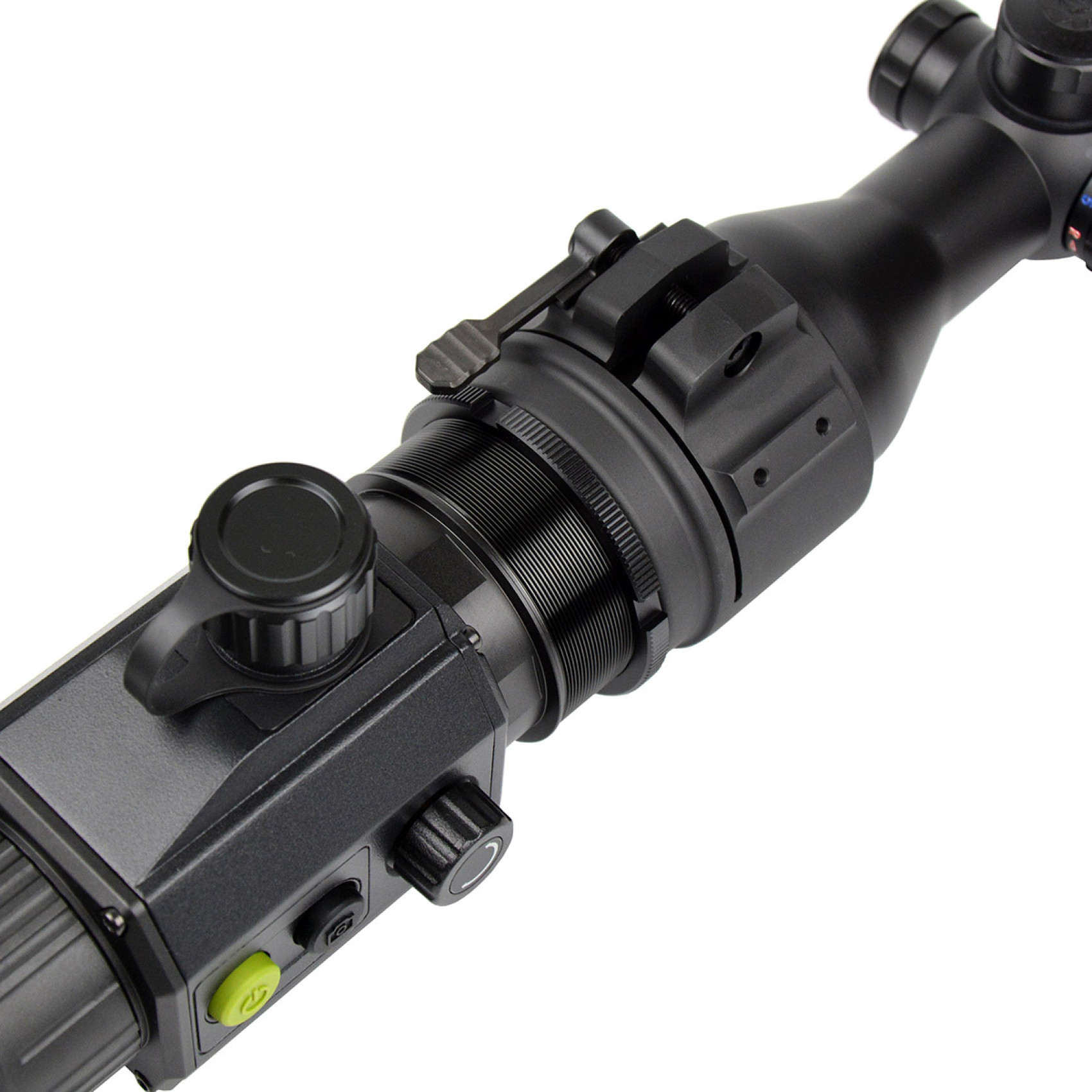

Can be mounted on a riflescope (44-56 mm)
Tripod socket (UNC 1/4-20 standard)

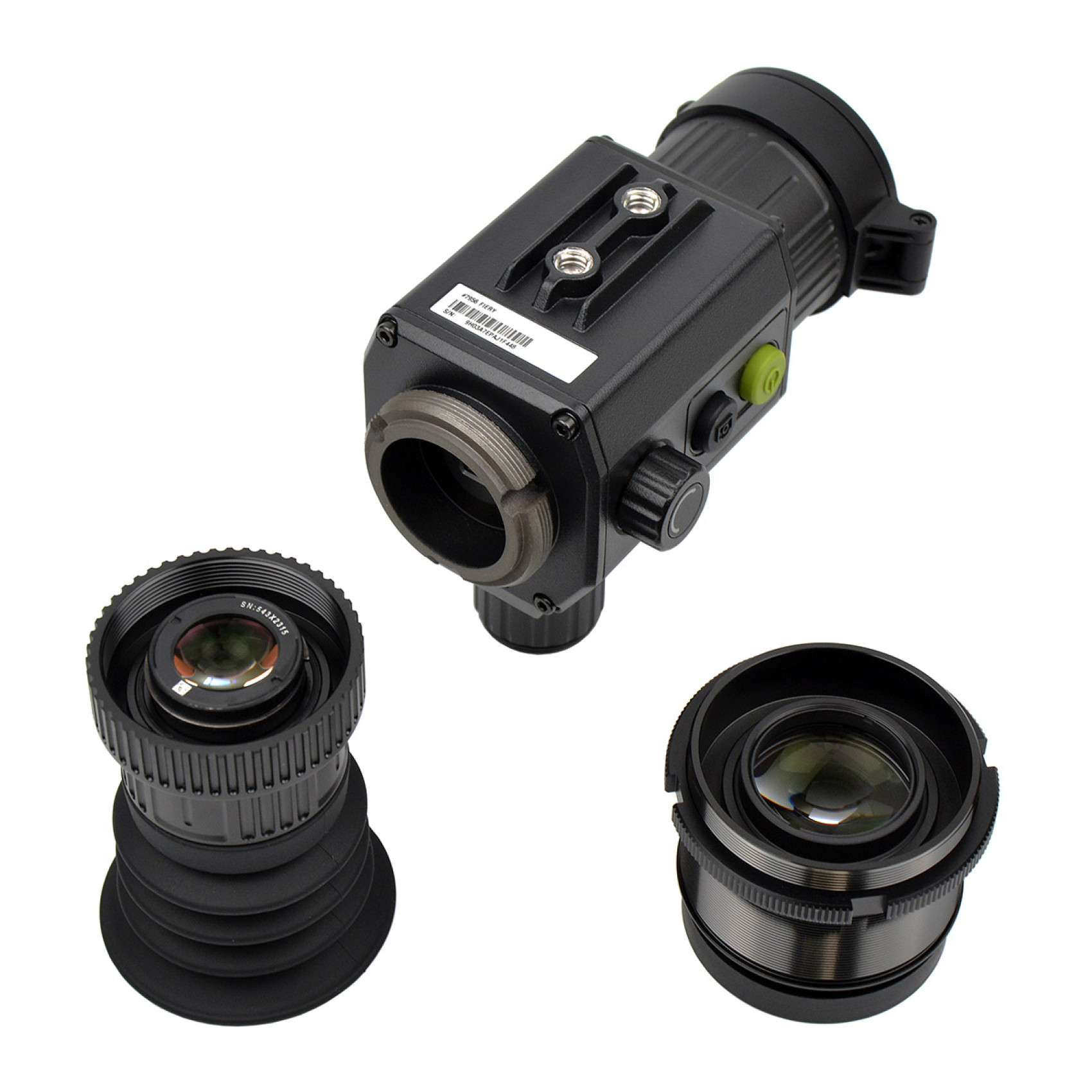

Removable eyepiece with diopter correction
Hinged protective lens cover
Rubber eyecup with 50 mm extension
Focus ring on the lens

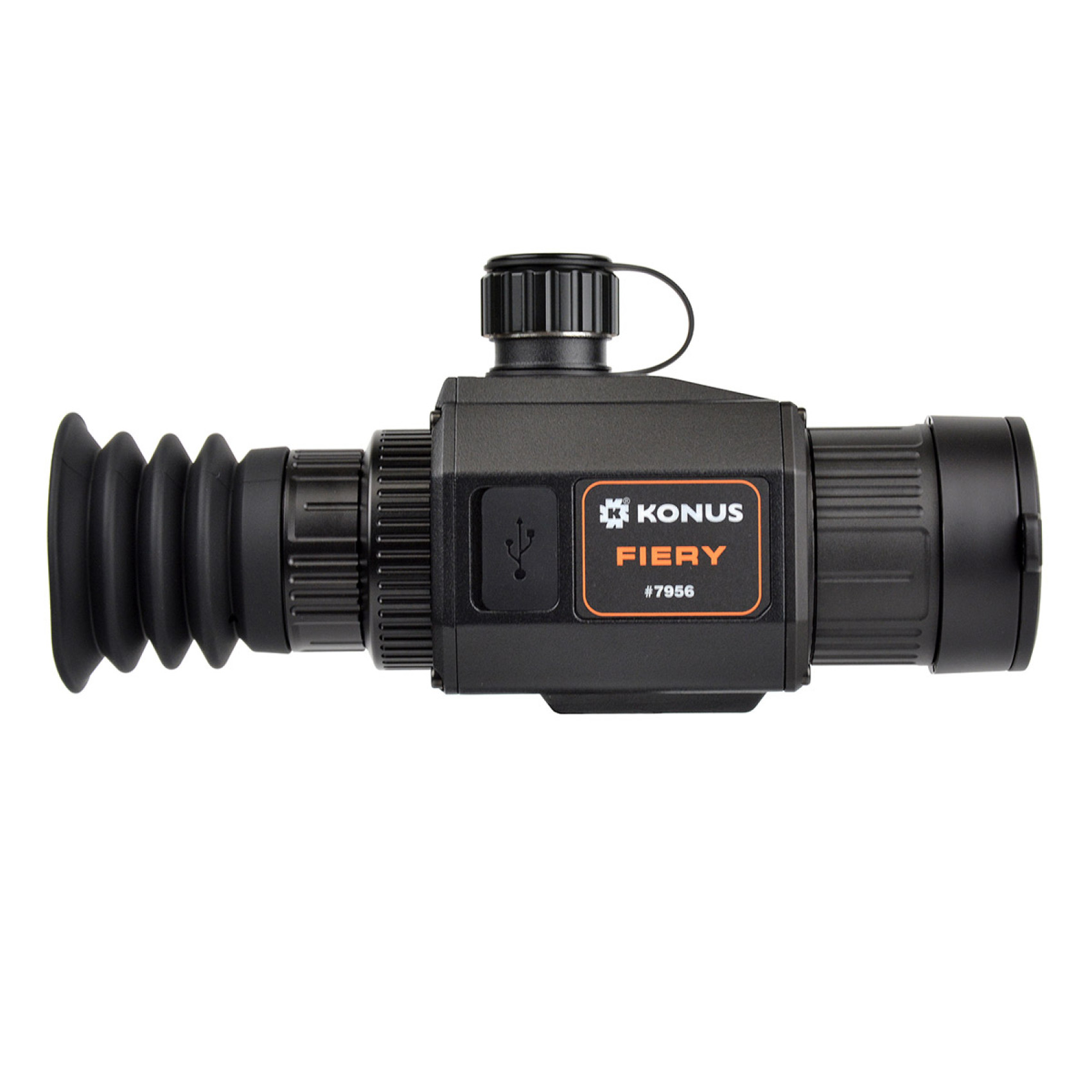

Universal USB Type-C connector
Metal body with water protection

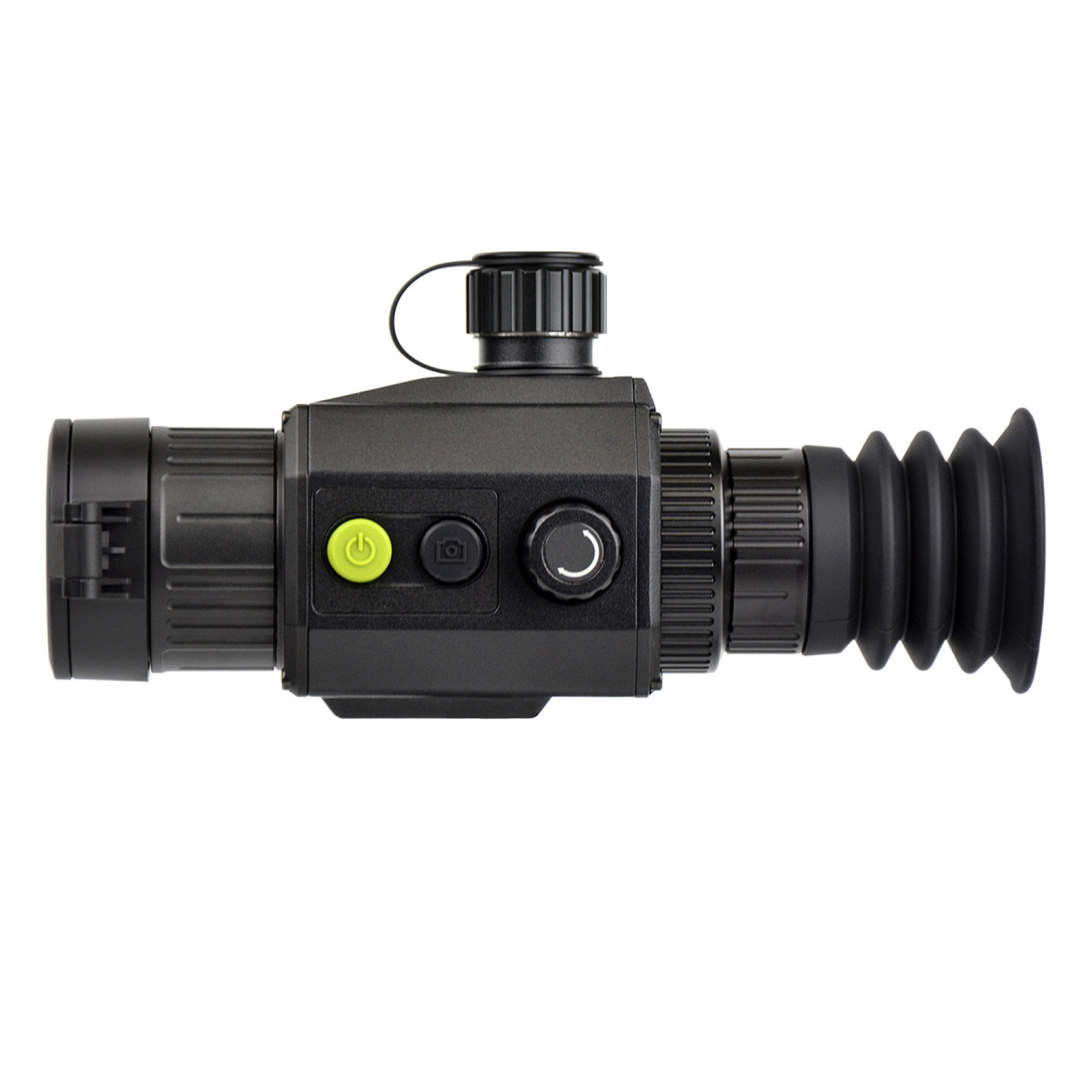

Rotary and pressure control drum

Characteristics

Sensor: uncooled VOx sensor 384 x 288 px (12 µm)
Spectral range: 8 μm - 14 μm
Temperature sensitivity: ≤ 35 µm (at 25 °C)
Lens: 35 mm, F1.0
Focusing: on the lens
Optical magnification: 2.1x
Digital zoom: 1x, 2x, 4x, 8x
Display: 1440 x 1080, 0.4 inches, OLED, 50 Hz
Grid: 10 types, 4 colors, on/off.
Color palettes: white hot, sepia, green hot, red hot, iron, black hot
Power supply type: 18650 x1 battery
Working time: up to 7.5 hours
Operating temperature: -20 °C to +55 °C
Built-in memory: 16 GB
Protection: IP67
Interface: USB Type-C, Wi-Fi

Compatible with weapons

Maximum energy of the bullet: 6000 J
Cartridge characteristics: .375 H&H

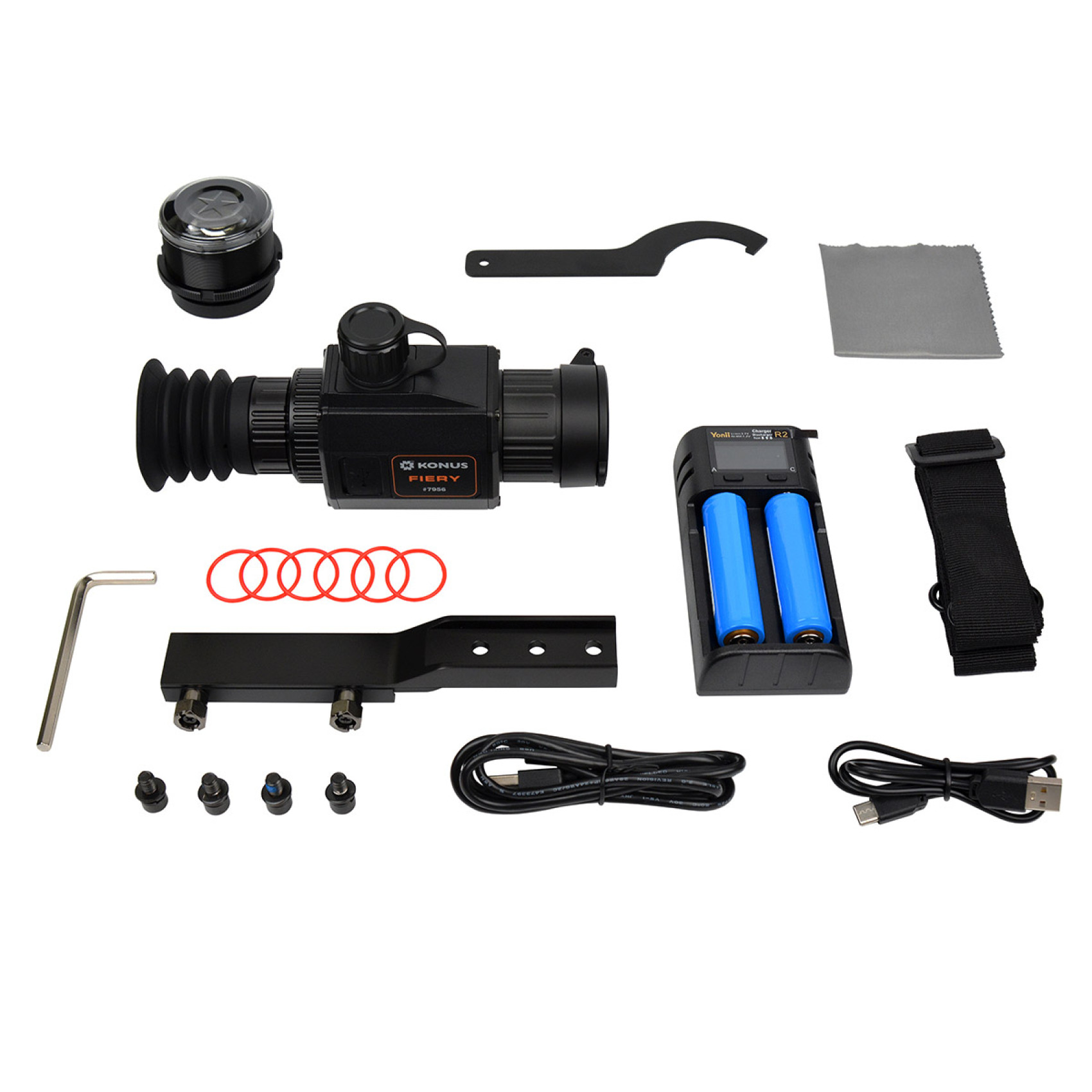

Package contents

Thermal imager

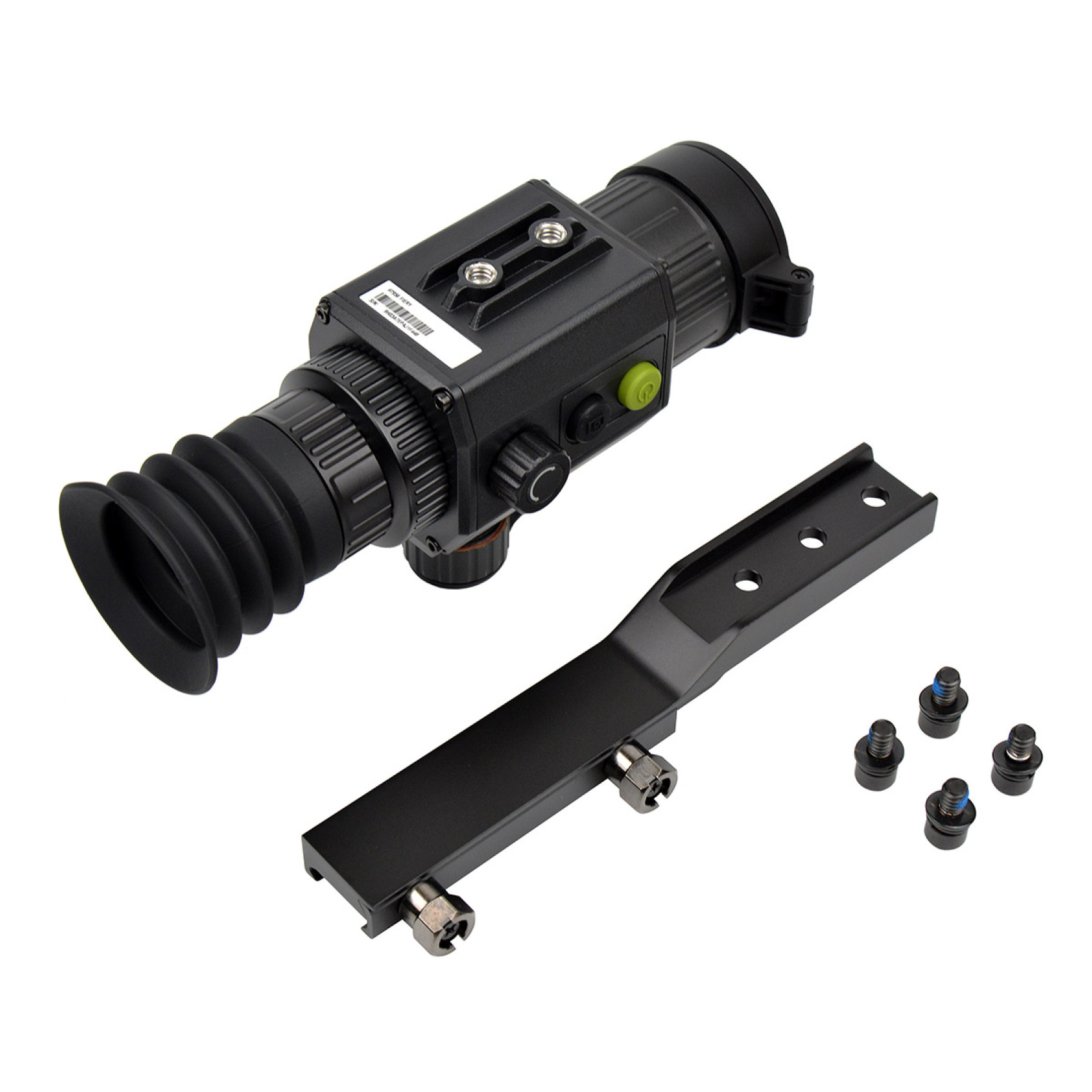

Weaver / Picatinny bracket

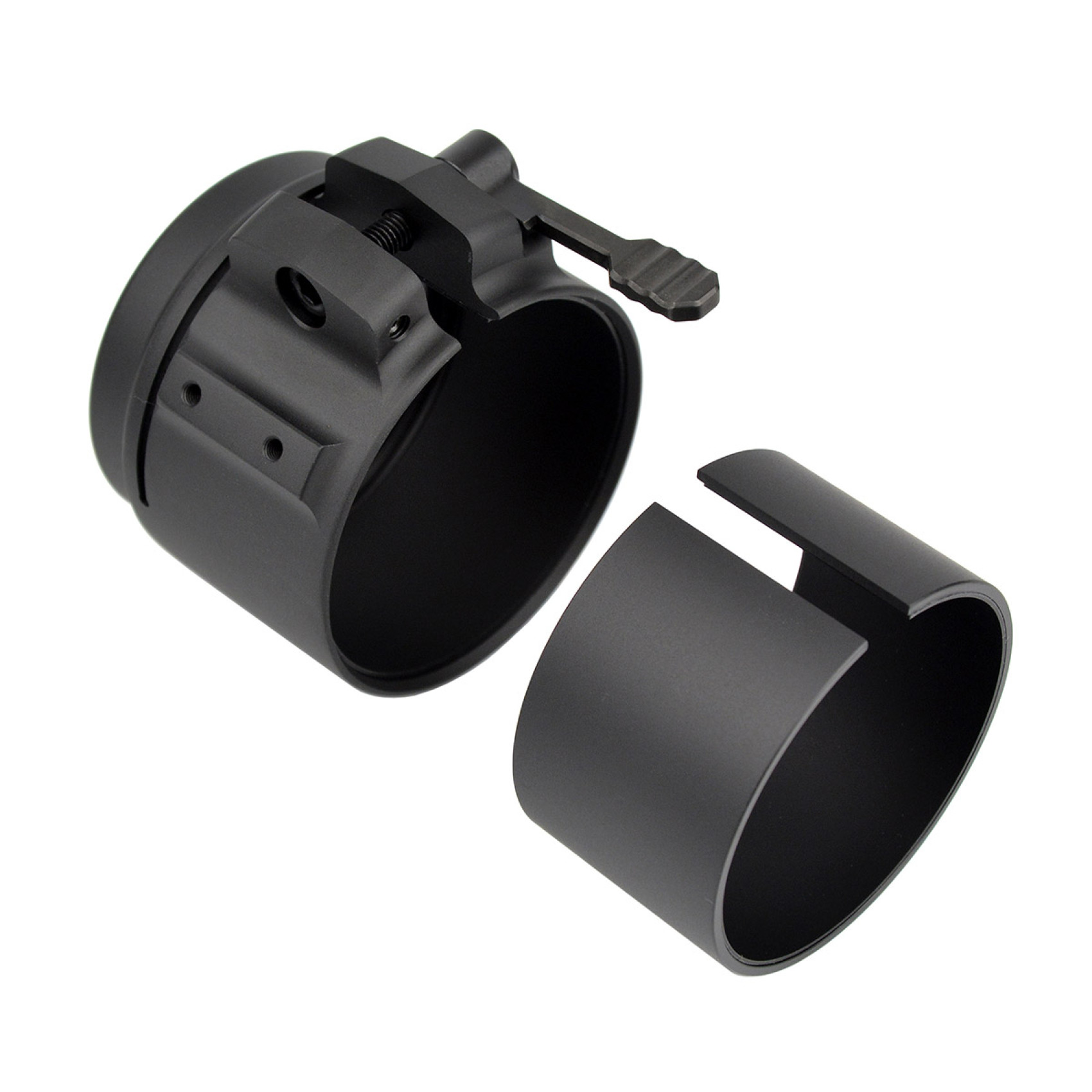

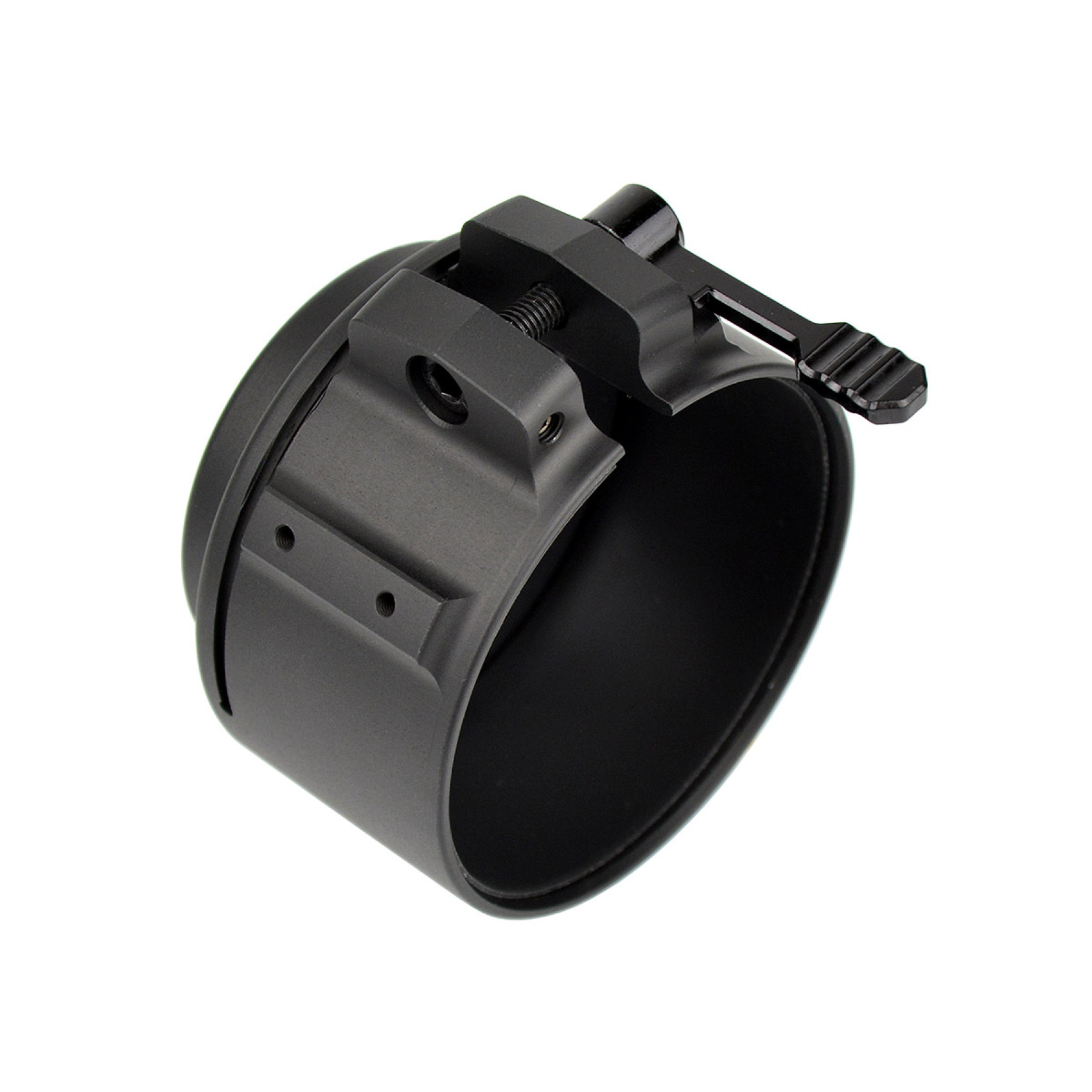

Adapter for the sight (44-50 mm)
Adapter for rifle scope (56 mm)
Double-sided coupling with nut
Clamping wrench for the coupling
USB interface cable
USB charging cable
Charging device
Fixing screws (4 pcs.)
O-ring (6 pcs.)

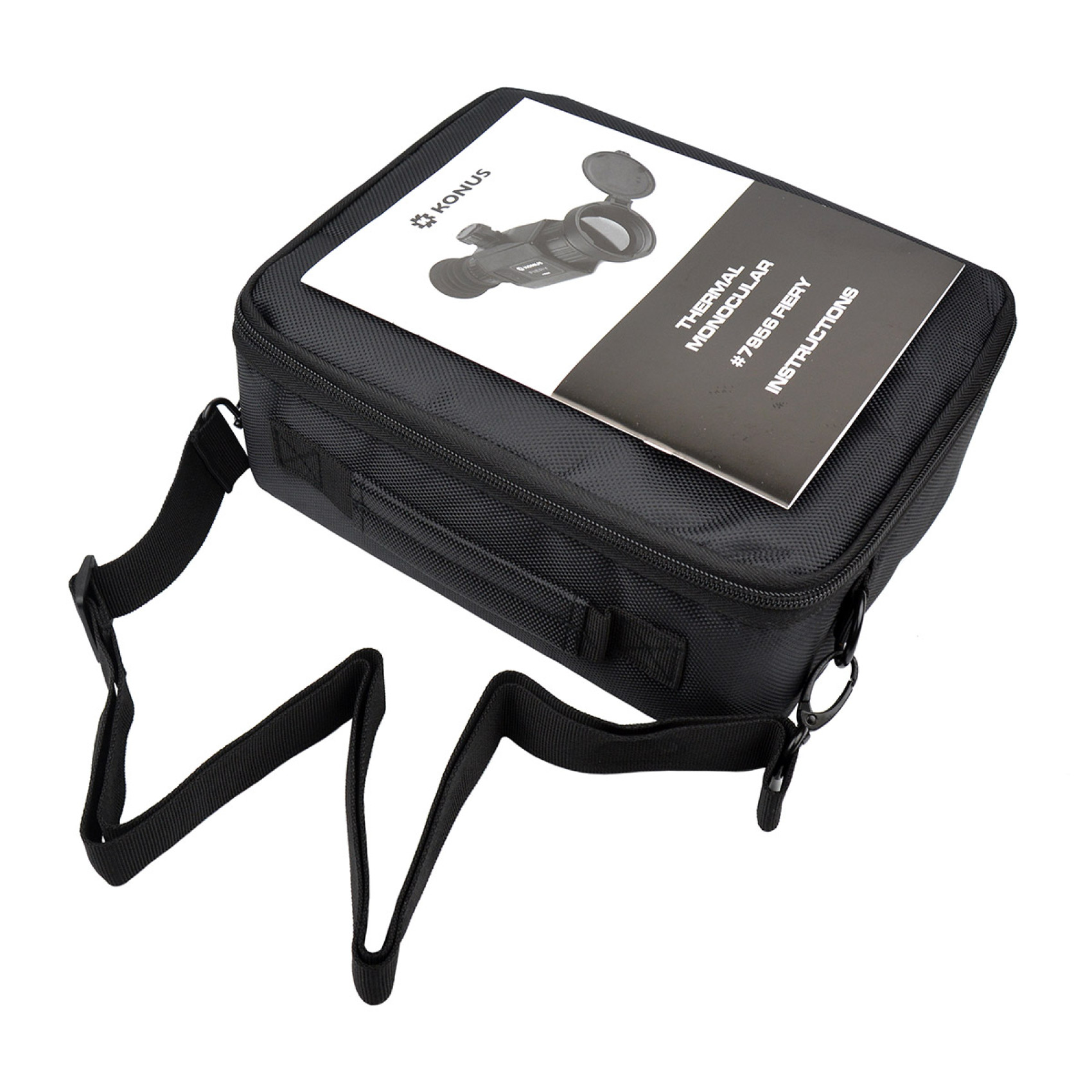

Bag for transportation
Bag strap
Hex key
Napkin for optics
Instruction manual

Dimensions

Dimensions: 184 x 88 x 65 mm (without bracket)
Weight: 553 g (with battery)
Package size: 267 x 228 x 116 mm
Weight of the package: 1996 г
