Flight stack SpeedyBee F405 v3 ESC 50A

Name: Flight stack SpeedyBee F405 v3 ESC 50A
Brand: SpeedyBee
Price: 2800 UAH
Availability: OutOfStock

Product Code: 9160

Brand: SpeedyBee

Reviews: 0

2 800₴

Reward Points: 56

Pre-Order

Description

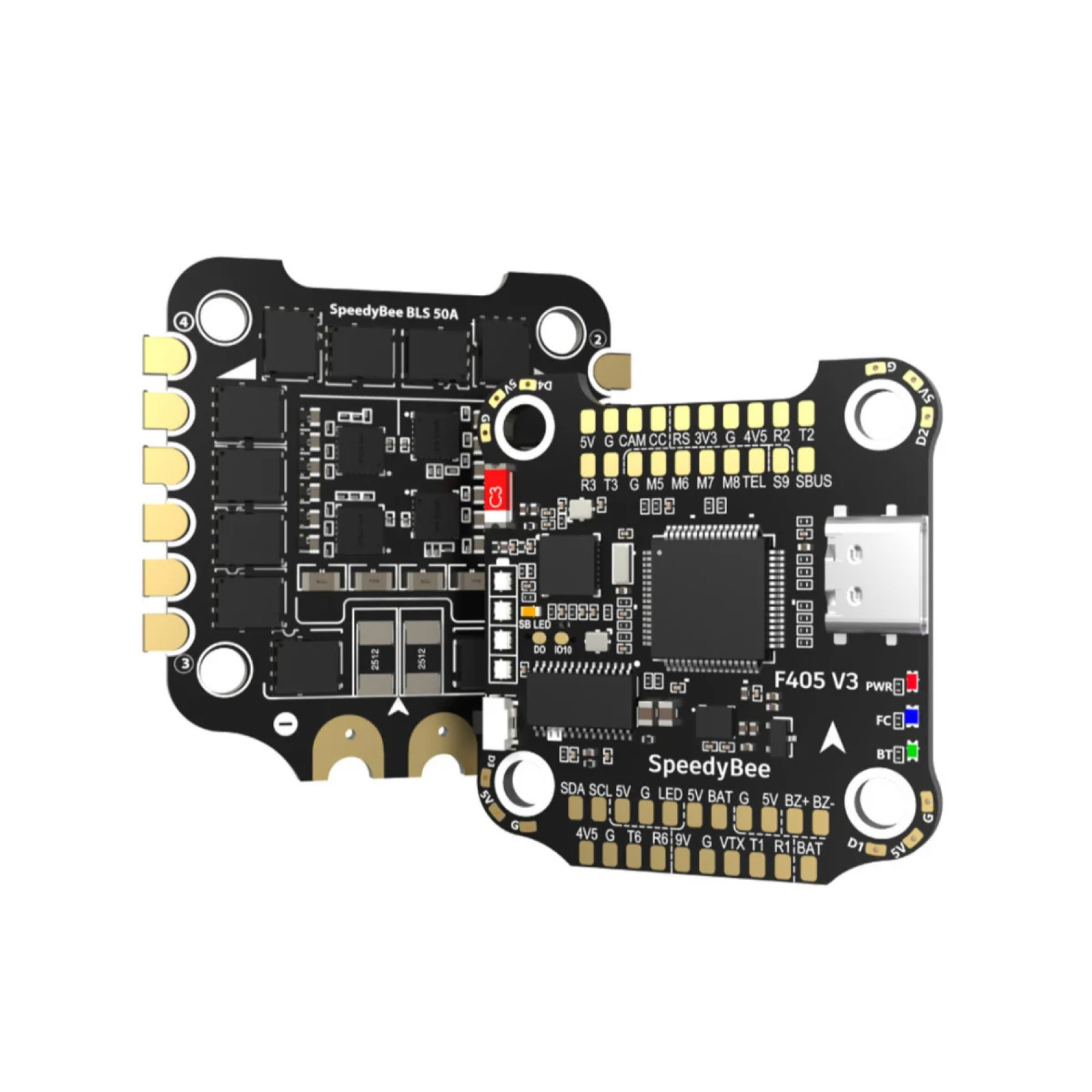

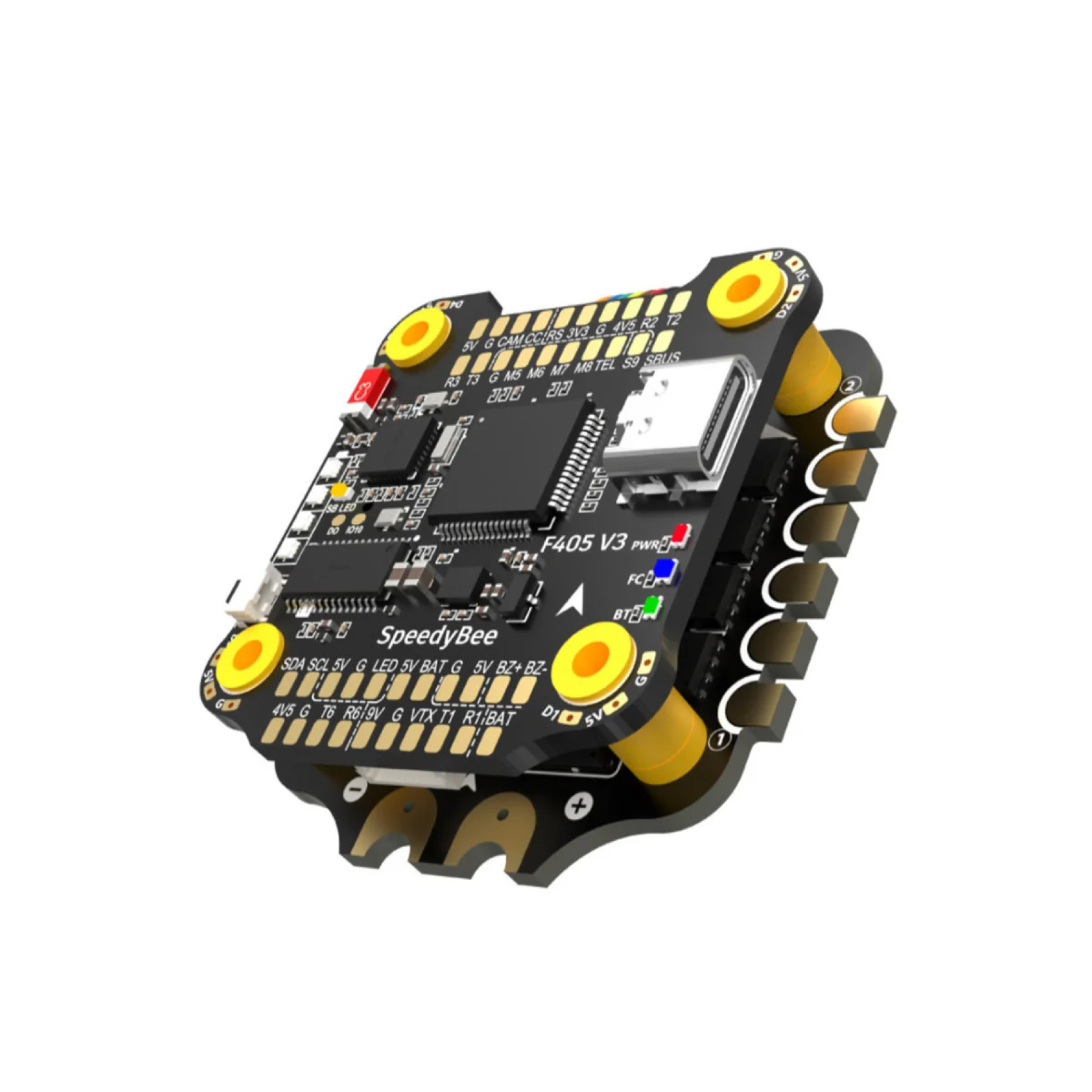

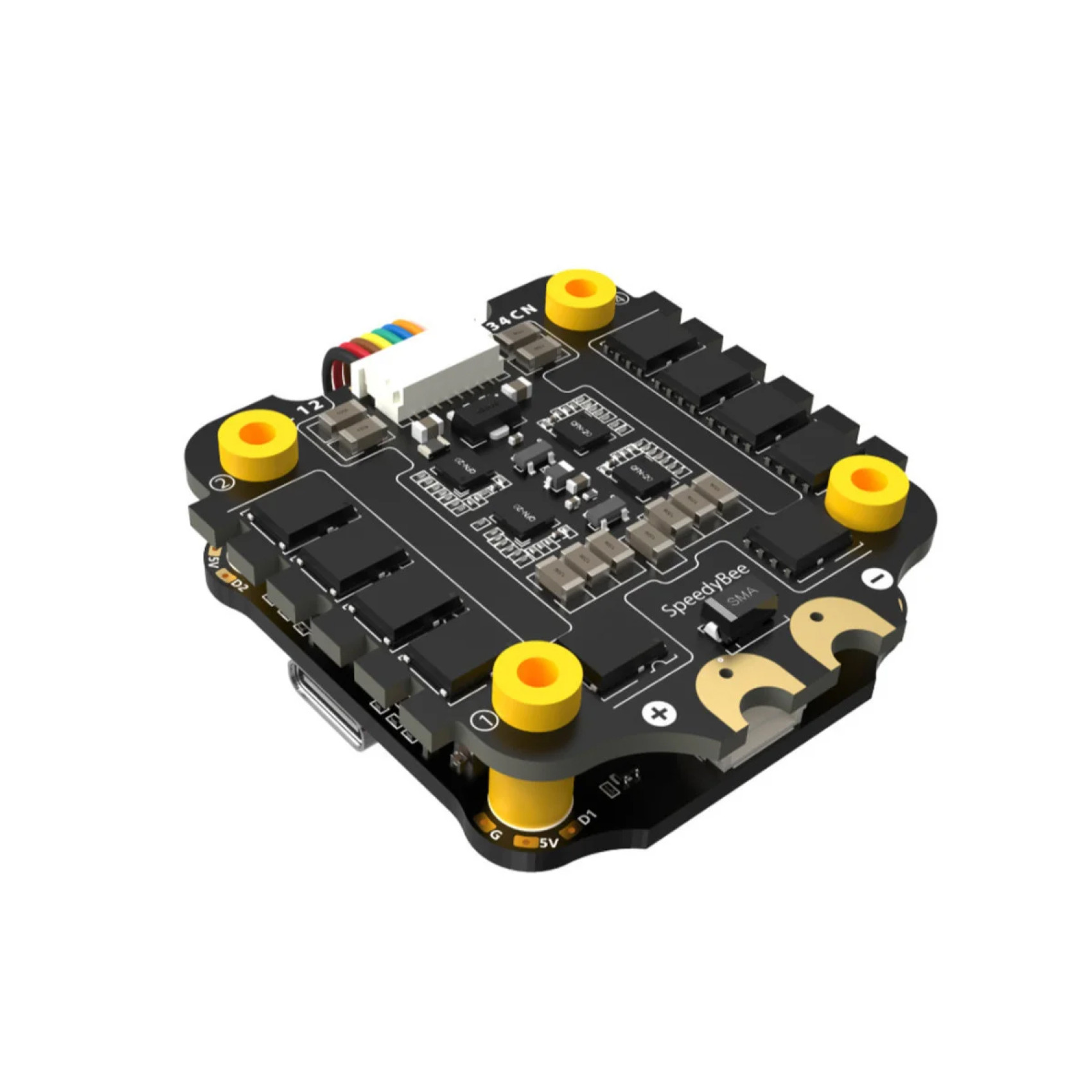

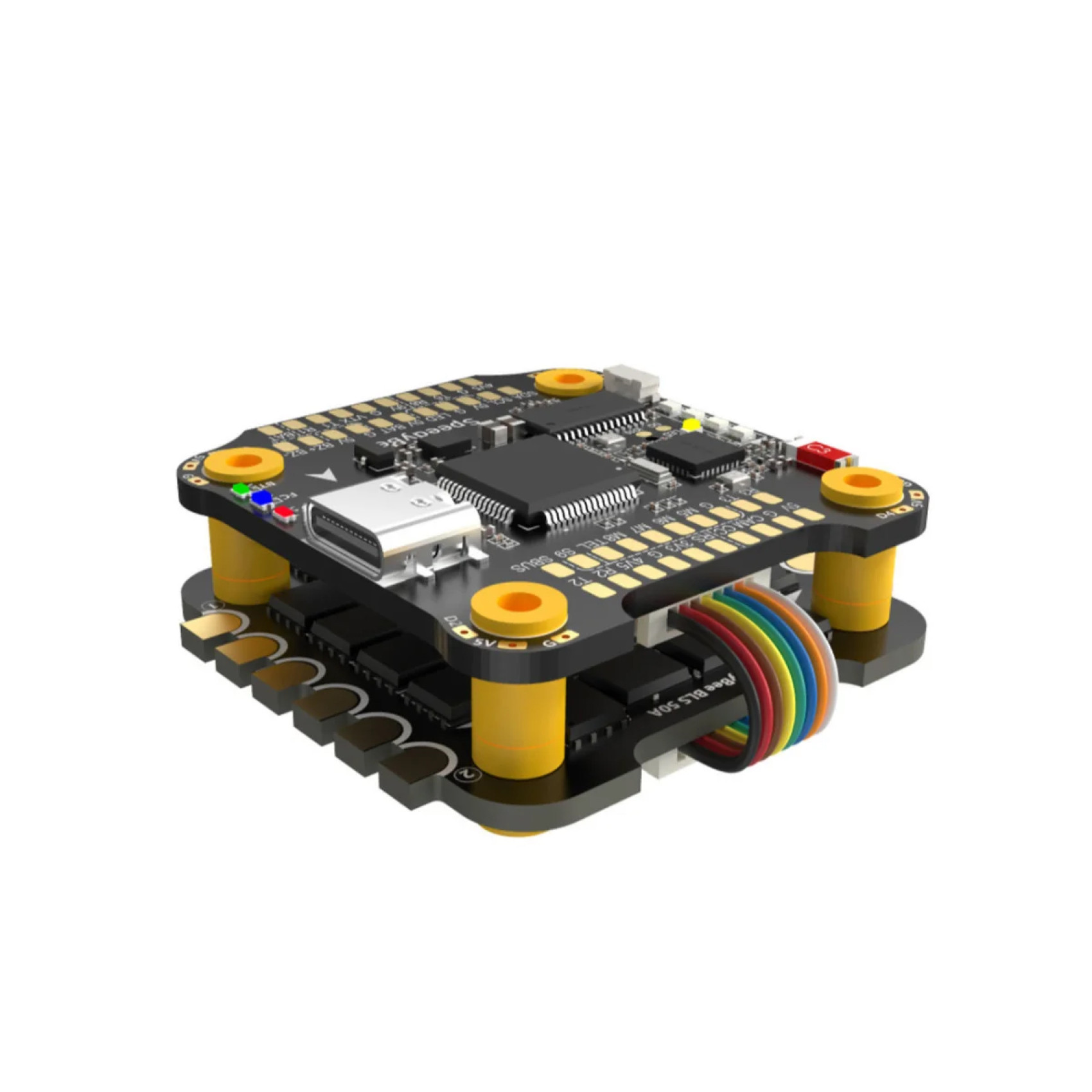

Flight stack SpeedyBee F405 v3 ESC 50A: F405 V3 FC flight controller and 50A 3-6s BLHeli_S 4-in-1 ESC speed controller in 30x30mm size. This unique stack allows for Bluetooth connectivity and setup, and is equipped with built-in 4-level battery indicators, 1500µF filter capacitor, integrated barometer, and many other features that make it the perfect choice for any FPV pilot.

Features

Dedicated DJI Air Unit connector for quick connection

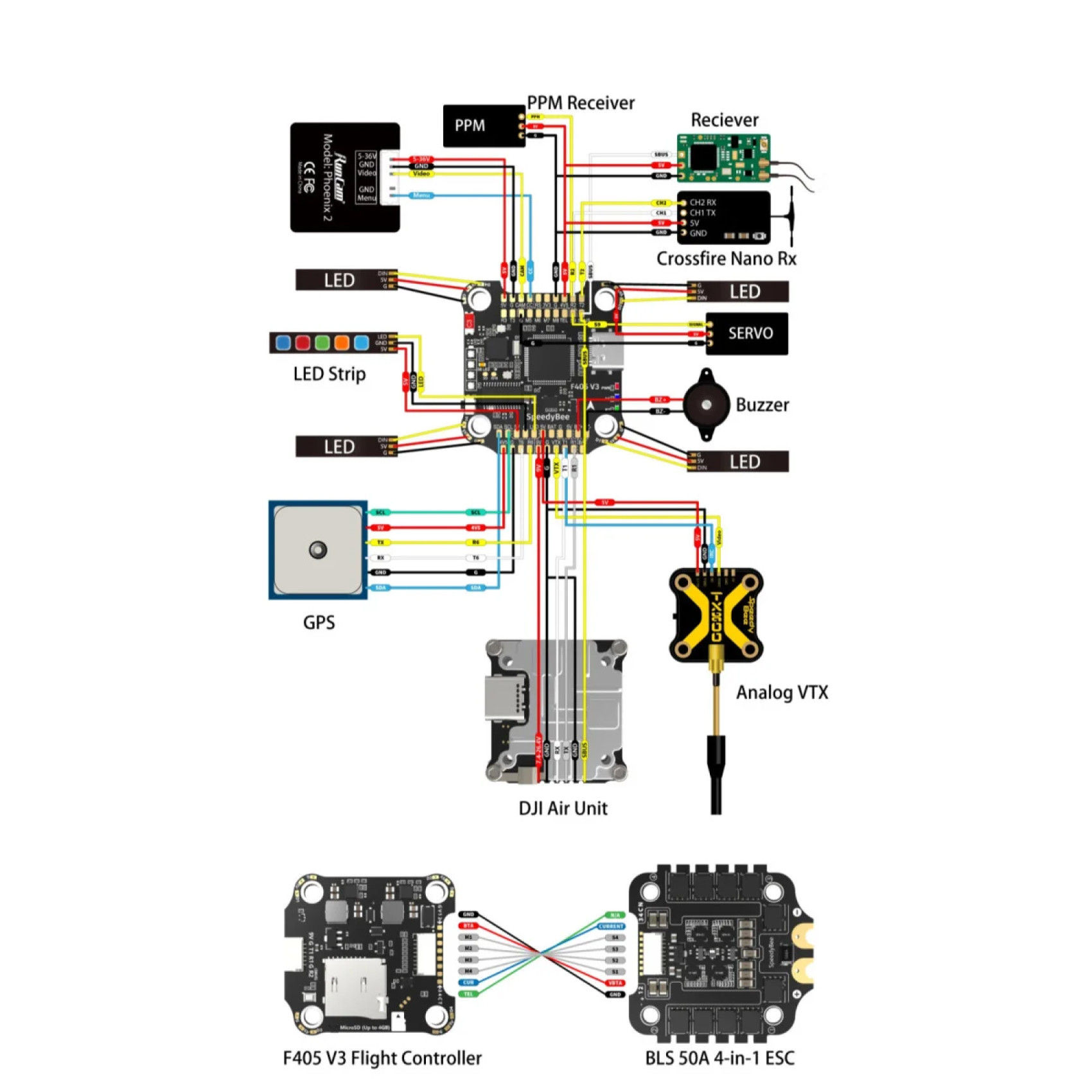

4 x UART for connecting devices: receiver, VTX, camera, GPS
SD card slot supports up to 4 GB of Blackbox data
BEC: 9V 2A and 5V 2A

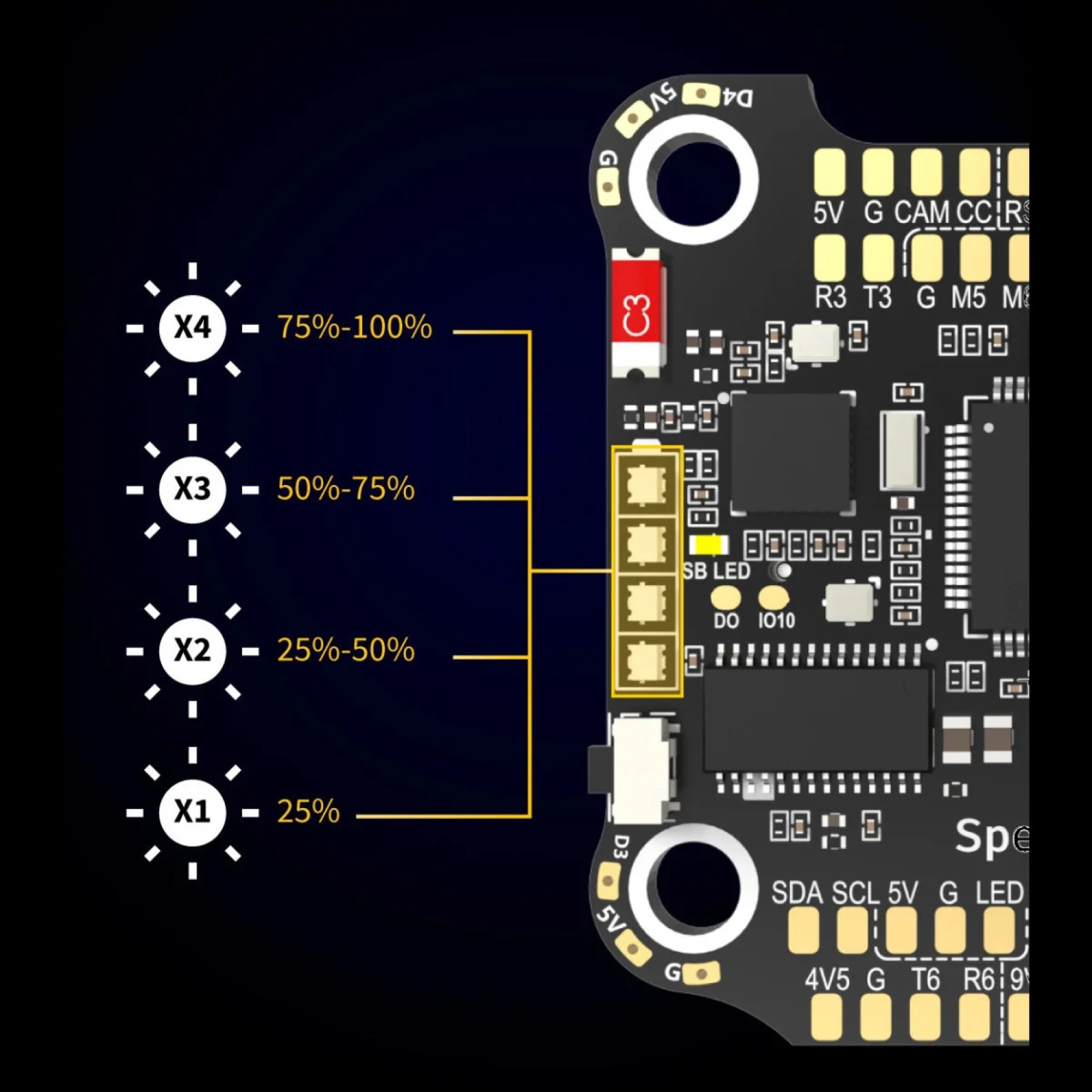

4-level LED battery indicator
8 outputs for motors: m1-m8
Built-in barometer
Control via Bluetooth

Characteristics

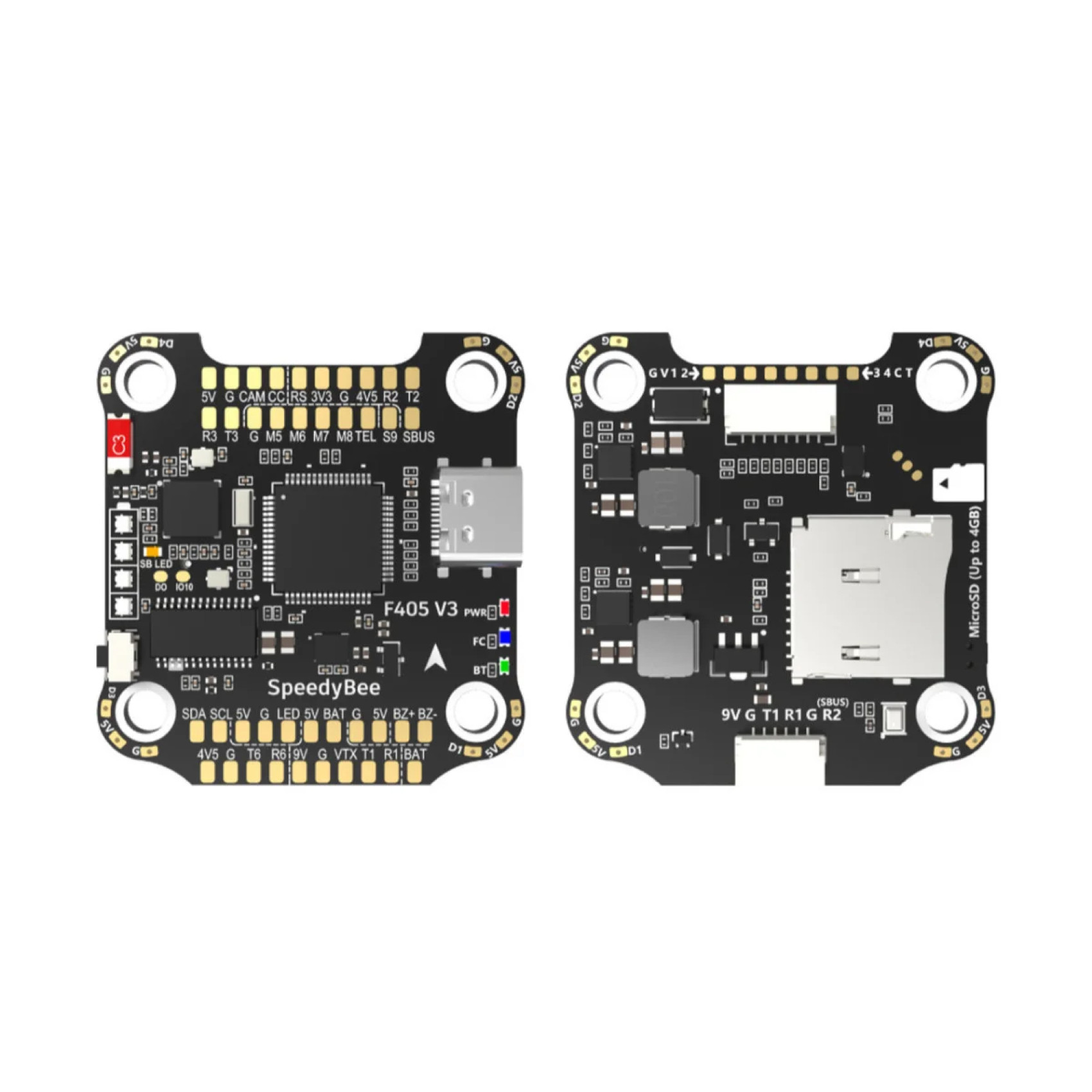

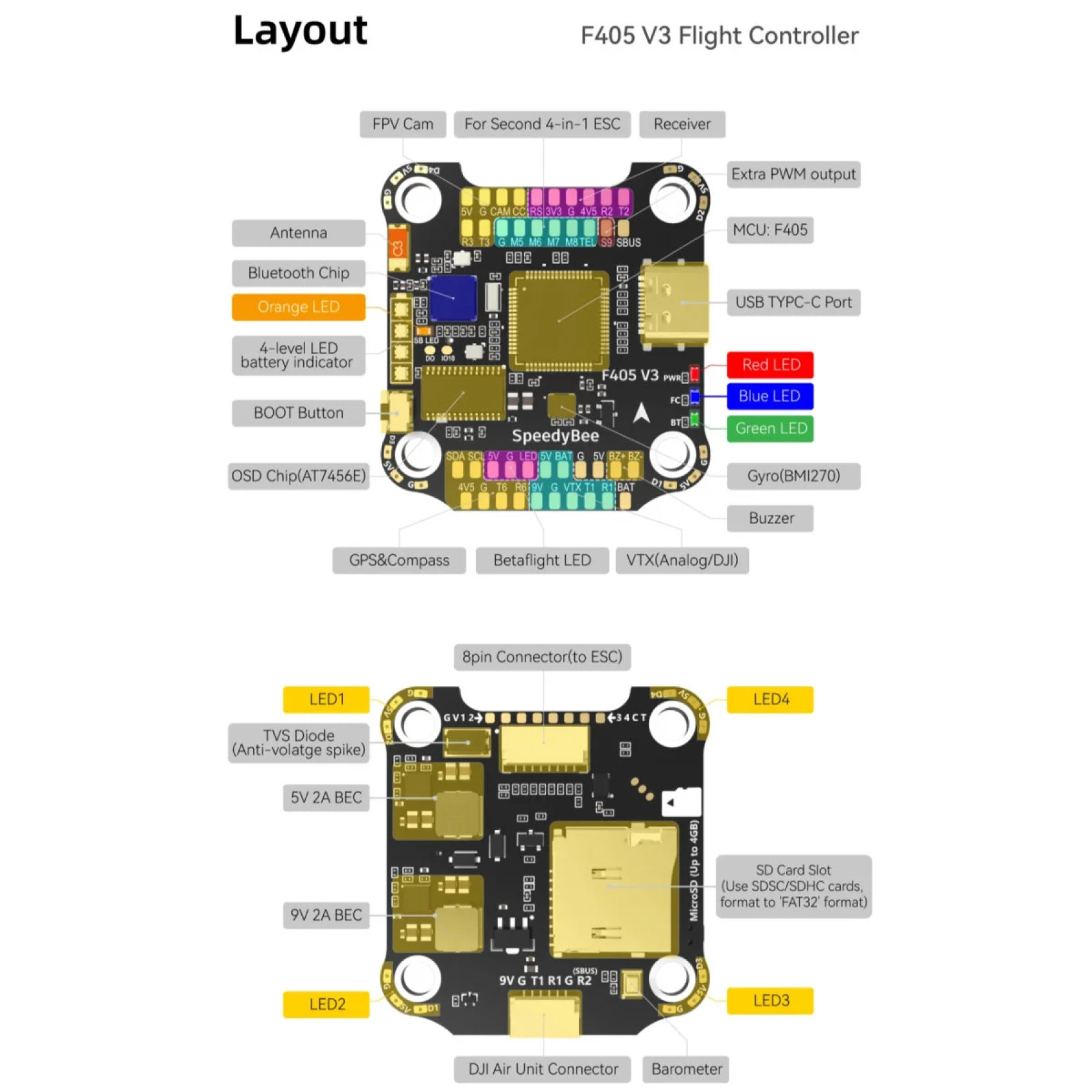

Flight controller F405 V3 FC:

MCU: STM32F405
IMU (Gyro): BMI270
USB Port: Type-C
Barometer: built-in
OSD Chip: AT7456E chip
BLE Bluetooth: Supported. Used to configure the flight controller.
DJI Air Unit connection method: via 6-pin connector or soldering
Blackbox MicroSD memory card support: Yes
BetaFlight camera control panel: yes
Input current sensor: yes
Input power: 3S - 6S Lipo

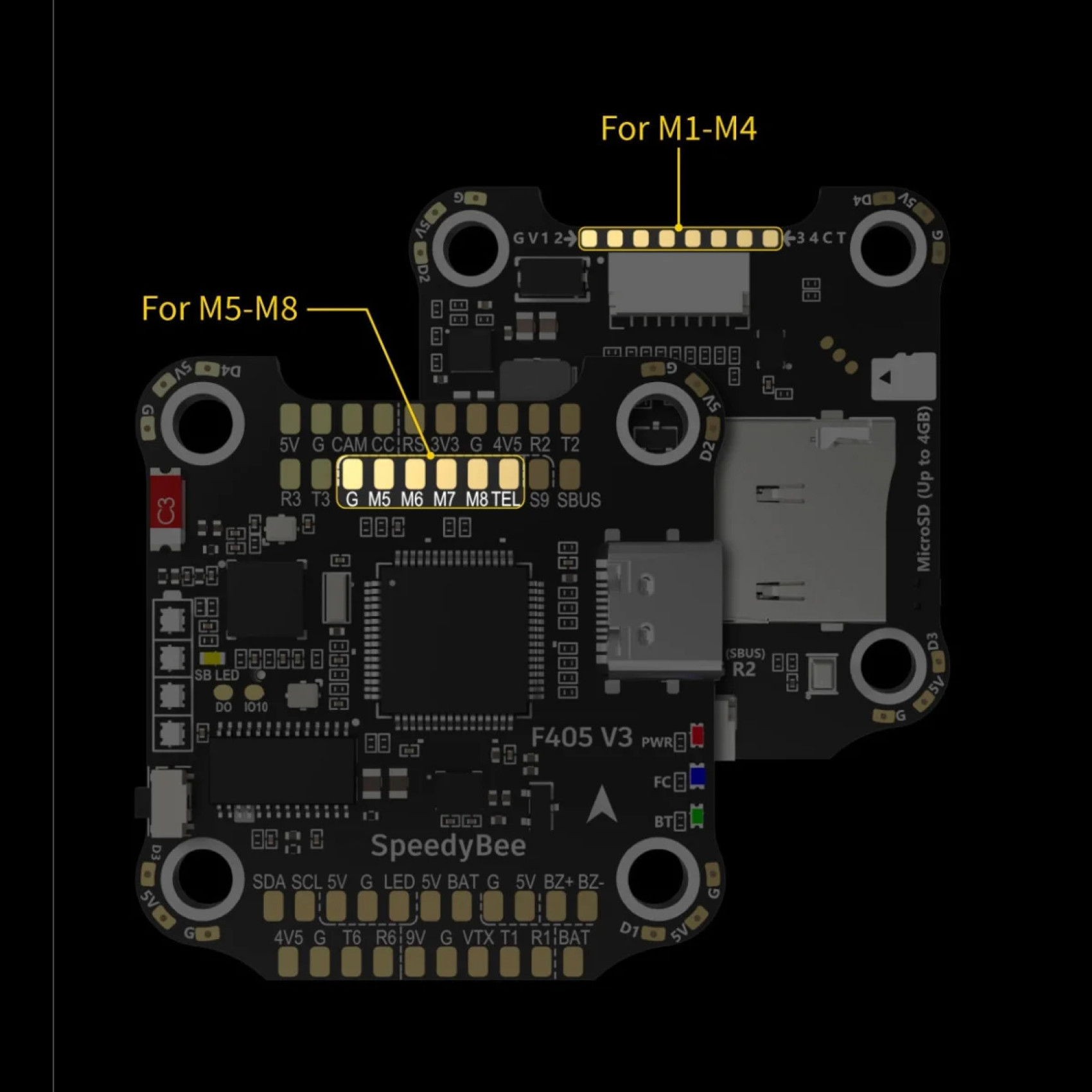

ESC outputs: M1 - M4 on the bottom side and M5-M8 on the top
UART: 6 sets (UART1, UART2, UART3, UART4 (for ESC telemetry), UART6)
ESC: Telemetry UART R5(UART5)
I2C: supported
Buzzer: yes
BOOT button: yes
RSSI input: yes
SmartPort: yes
Firmware support: BetaFlight(Default), EMUFlight, INAV
Firmware target: SPEEDYBEEF405V3

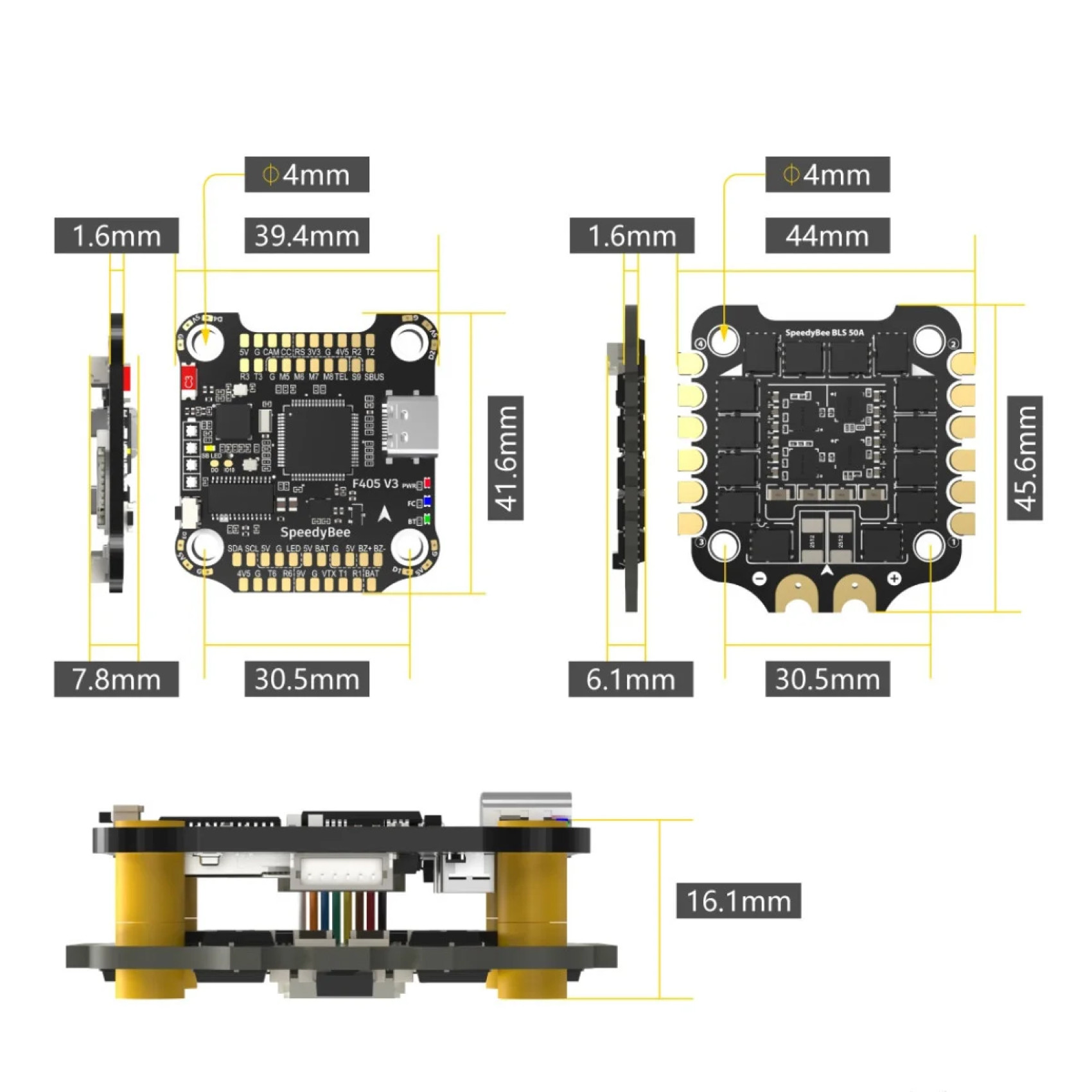

Mounting scheme: 30.5x30.5mm (4mm hole diameter)
Dimensions: 41.6x39.4x7.8mm
Weight: 9.6g

*Note: BOOT button. Usage options:

[А]. Press and hold the BOOT button and turn on the FC at the same time to make the FC enter DFU mode, this is for flashing the FC when the firmware has flown.

[Б]. When the PC is powered on and in standby mode, the BOOT button can be used to control the LED strips connected to the LED1-LED4 connectors on the bottom side. By default, press the BOOT button briefly to switch to the LED display mode. Press and hold the BOOT button to toggle between SpeedyBee-LED mode and BF-LED mode. In the BF-LED mode, all LED1-LED4 bands will be controlled by the Betaflight firmware.

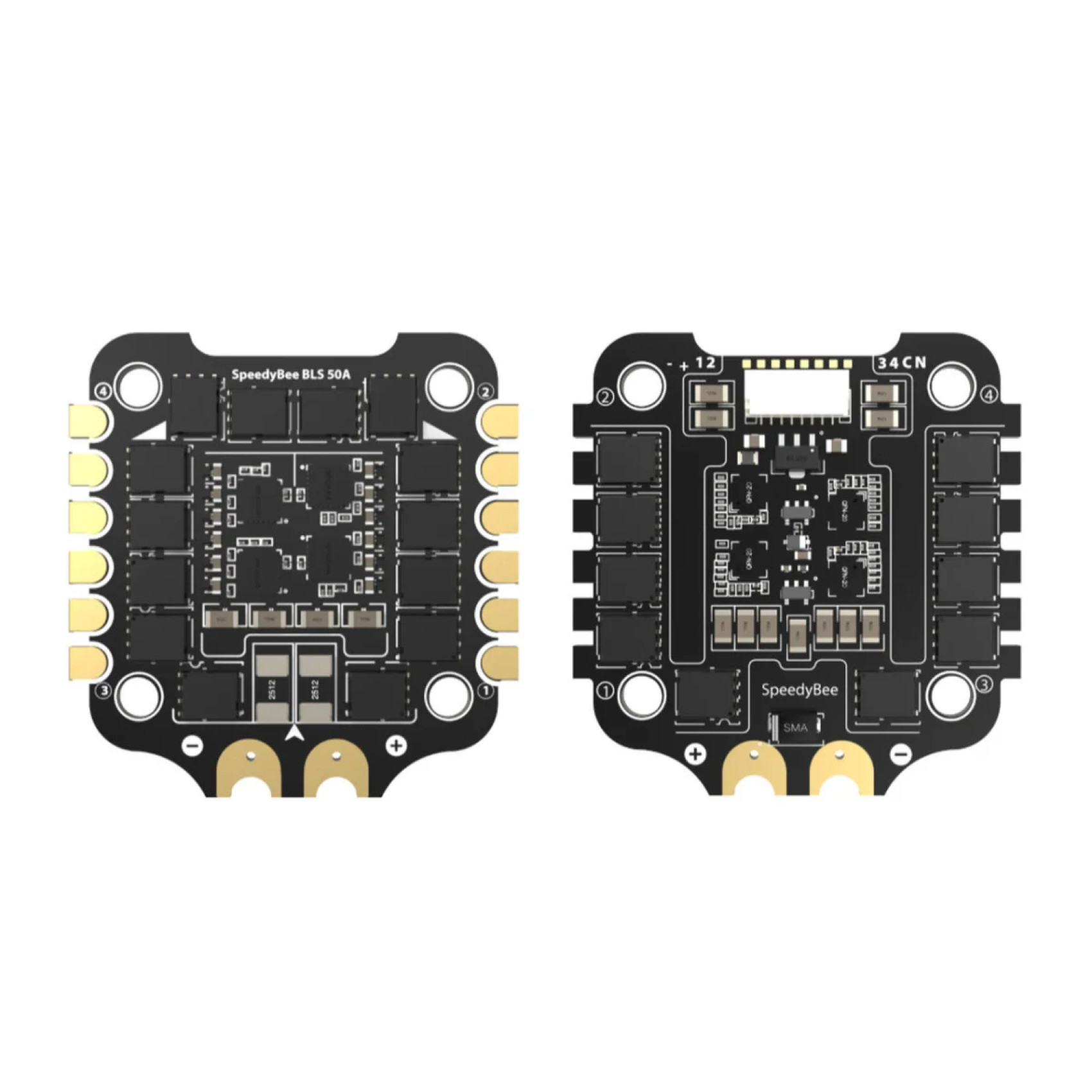

SpeedyBee BLS 50A 30x30 4-in-1 ESC speed controller

Firmware: BLHeli_S JH50
Wireless configuration: SpeedyBee app support
Link to PC Configurator: https://esc-configurator.com/
Constant current: 50A x 4
Peak current: 55A(5sec)
TVS protection: yes
External capacitor: 1500uF Low ESR Capacitor (included)
ESC Protocol: DSHOT300/600
Input power: 3-6S LiPo
Output power: VBAT
Current sensor: yes
Mounting size: 30.5x30.5mm (4mm hole diameter)
Dimensions: 45.6x44x6.1mm
Weight: 13.8g

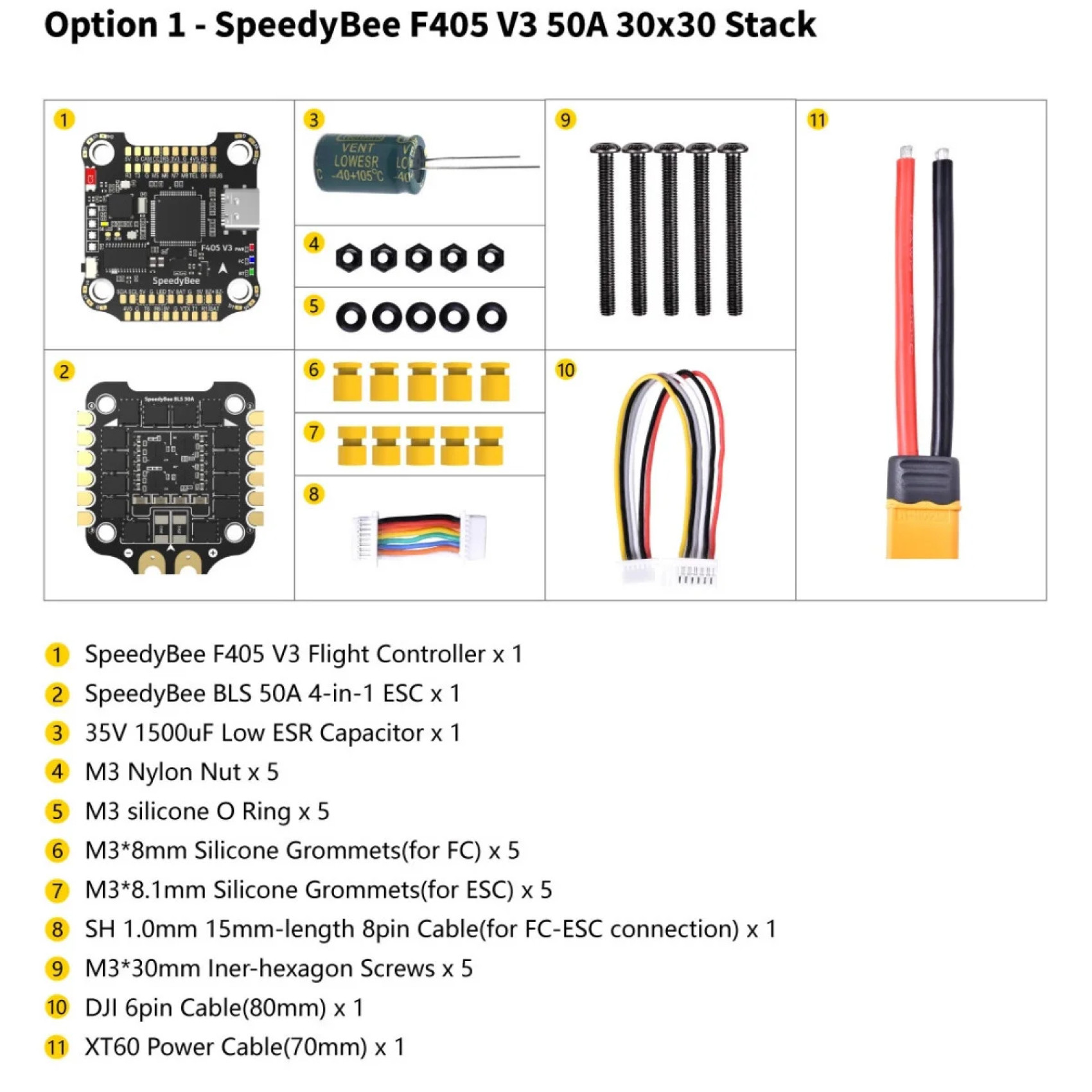

Package contents

F405 V3 FC

1x SH 1.0mm 30mm 8pin cable (for FC-ESC connection)
1x SpeedyBee F405 V3 Flight Controller - 30x30
5x M3x8mm silicone bushings (for FC)
1x DJI 6pin cable (80mm)

50A 3-6s BLHeli_S 4-in-1 ESC

1x SH 1.0mm 30mm 8pin cable (for FC-ESC connection)
1x SpeedyBee 50A 3-6S BLHeli_S 4-in-1 ESC - 30x30
5x M3x8.1mm silicone bushings (for ESC)
1x 35V 1500uF Low ESR Capacitor
1x XT60 power cable (70mm)
5x M3 silicone O-rings
